Grade 350 Structural Steel Plate

Page Menu
Overview

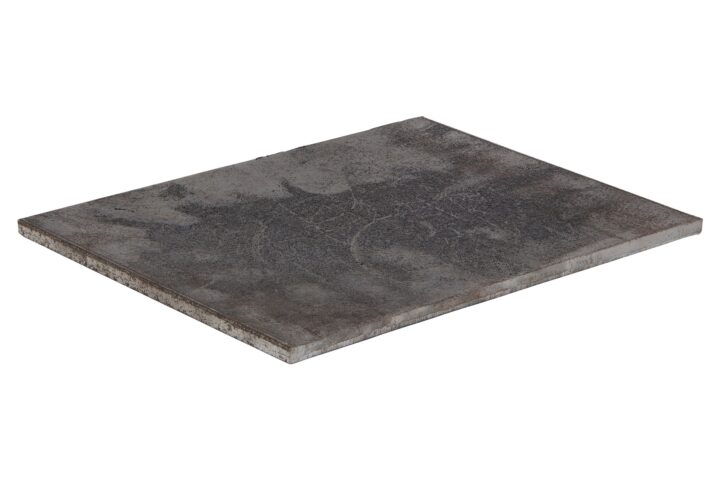

Structural Steel Plate – Grade 350

InfraBuild Steel Centre supplies Grade 350 structural steel plate, a high-strength steel plate product with nominal yield strength of 350 MPa.

Grade 350 structural steel plate features excellent formability and weldability, and is supplied by InfraBuild Steel Centre for a wide range of applications including general fabrication, construction of high-rise buildings, construction of bridges and fabrication of storage tanks.

Typical Uses

  • General fabrication
  • Structural members
  • High-rise buildings
  • Bridges
  • Storage Tanks

Features

  • Medium-strength structural steel plate product with nominal yield strength of 250 MPa
  • Guaranteed minimum strength levels
  • Excellent weldability
  • Good formability

Relevant Standards

  • AS/NZS 3678: Structural steel – Hot-rolled plates, floorplates and slabs

To find out more about the Grade 350 structural steel plate stocked at your local InfraBuild Steel Centre please contact your nearest branch.

Specifications
Plate Grade 350
Thickness (mm) Mass (kg/m) Width (mm) Length (m) kg/lineal metre of plate width
5 39.25 2400 6.0 94.2
5 39.25 2400 9.0 94.2
5 39.25 3000 9.0 117.75
6 47.10 2400 9.6 113.04
8 62.80 2400 9.6 150.72
10 78.50 2400 9.6 188.40
10 78.50 3100 9.6 243.35
12 94.20 2400 9.6 226.08
12 94.20 3100 9.6 292.02
16 125.60 2400 9.6 301.44
16 125.60 3100 9.6 389.36
20 157.00 2400 9.6 376.80
20 157.00 3100 9.6 486.70
25 196.25 2400 9.6 471.00
32 251.20 2400 9.6 602.88
40 314.00 2400 7.6 753.60
50 392.50 2400 7.6 942.00
60 471.00 2400 7.6 1130.40
70 549.50 2400 6.0 1318.80
80 628.00 2400 5.5 1507.20
90 706.5 2400 6.3 1695.6
90 706.5 2400 3.15 1695.6
100 785 2100 6.5 1648.5
100 785 2100 3.25 1648.5
Processing

InfraBuild Steel Centre can provide the following processing services for this product:

  • High-definition Plasma Cutting
  • Oxy Profiling
  • Flame Cutting
  • Punching
  • Drilling
  • Tapping
  • Bevelling
  • Counter Sinking
  • Counter Boring
Delivery

InfraBuild Steel Centre can provide delivery services for this product.

Please contact your nearest branch for more information.
