HANDIMESH® Sheet – Handi and Handy sized

Page Menu
Overview

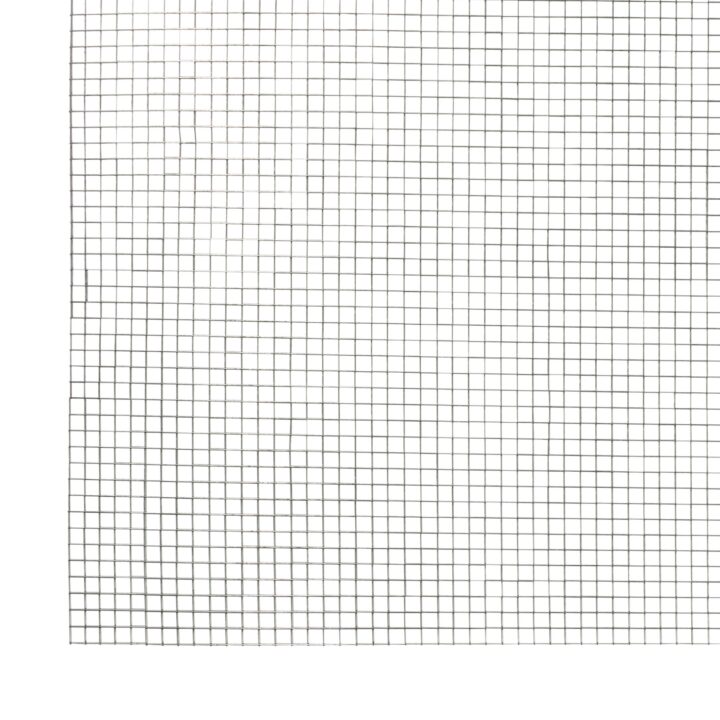

Handimesh Reinforcing Mesh

Manufactured from 100 per cent Australian steel, HANDIMESH® general purpose welded wire mesh sheets and rolls are handy for just about any steel reinforcing mesh application.

Handi and Handy sized sheets are made for people who are doing smaller jobs and don’t need full-size sheets.

Typical Uses

  • Fences
  • Shelving
  • Security
  • Gates
  • Trailers
  • Guarding

Features

  • Available in pre-galvanized and bright wire
  • Available in sheets and rolls
  • Flush cut

To find out more about the HANDIMESH® Reinforcing Mesh sheet stocked at your local InfraBuild Reinforcing please contact your nearest bar shop.

Specifications
HANDIMESH® Sheet Handi Sized Galvanized
Product Code Std Unit Longitudinal Wires* Cross Wires* Mass (kg) Dimensions (m)
G112AHS Sheet 49 x 2.5 @ 25 81 x 2.5 @ 25 8 2 x 1.2
G122AHS Sheet 49 x 2.5 @ 25 41 x 2.5 @ 50 6 2 x 1.2
G224HS Sheet 25 x 4 @ 50 41 x 4 @ 50 10 2 x 1.2
G234HS Sheet 25 x 4 @ 50 28 x 4 @ 75 8 2 x 1.2
G444HS Sheet 13 x 4 @ 100 41 x 4 @ 50 5 2 x 1.2
*Number of Wires x Diameter (mm) @ Spacing (mm) PGHG
HANDIMESH® Sheet Handy Sized Galvanized
Product Code Std Unit Longitudinal Wires* Cross Wires* Mass (kg) Dimensions (m)
G112AHS24 Sheet 49 x 2.5 @ 25 97 x 2.3 @ 25 9 2.4 x 1.2
G122AHS24 Sheet 49 x 2.5 @ 25 49 x 2.3 @ 50 7 2.4 x 1.2
G224HS24 Sheet 25 x 4 @ 50 49 x 4 @ 50 12 2.4 x 1.2
G234HS24 Sheet 25 x 4 @ 50 33 x 4 @ 75 10 2.4 x 1.2
G444HS24 Sheet 13 x 4 @ 100 25 x 4 @ 100 6 2.4 x 1.2
*Number of Wires x Diameter (mm) @ Spacing (mm)
