Footing Cages

Page Menu
Overview

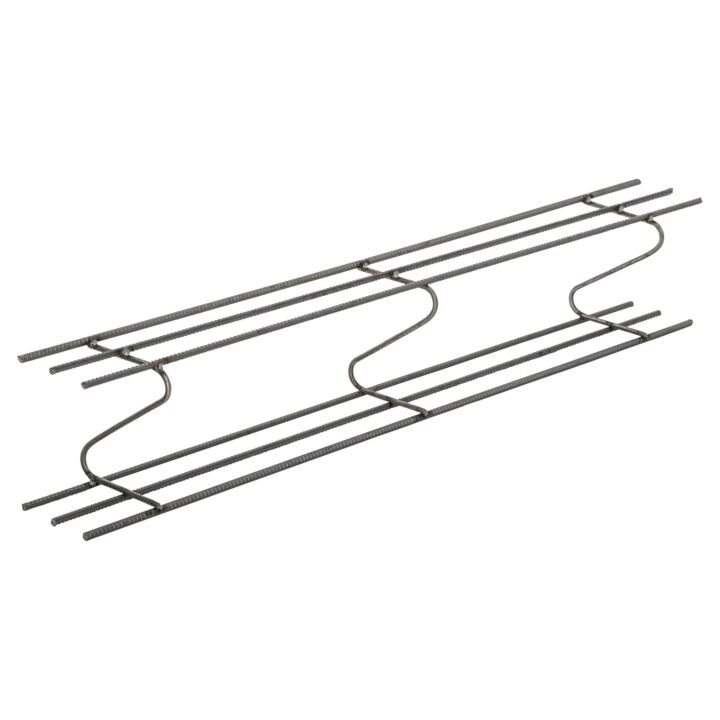

Footing Cages

Footing Cages supplied by InfraBuild Reinforcing increase the speed of installation for various footing applications. Available in Class L wire, footing cages are available in depths of 200 mm, 300 mm and 400 mm.

Typical Uses

  • Footing Cages provide reinforcing for various concrete strip footing applications

Features

  • Increase the speed of installation for various footing applications

Relevant Standards

  • AS/NZS 4671 Steel for the reinforcement of concrete
  • AS 2870 Residential slabs and footings construction

To find out more about the range footing cages stocked at your local InfraBuild Reinforcing please contact your nearest branch.

Specifications
Depth (mm) Product Code L8TM Top & Bottom L11TM Top & Bottom L12TM Top & Bottom L8TM200 Top & L11TM200 Bottom
Cage Width (mm)
200 300 200 300 200 300 200
200 SE QLD ZC110 ZC12 ZC111 ZC11 – – –
NSW 8ZC2020 8TC3020 11ZC2020 11TC3020 12ZC020 – –
300 SE QLD ZC210 ZC17 ZC711 ZC18 ZC97 – ZX7A
NSW 8ZC2028 8TC3030 11ZC2028 11TC3030 12ZC2028 12TC3028 –
400 SE QLD ZC310 FC19 ZC811 FC20 – – FC8A
NSW 8ZC2040 – 11ZC2040 – 12ZC2040 – –
